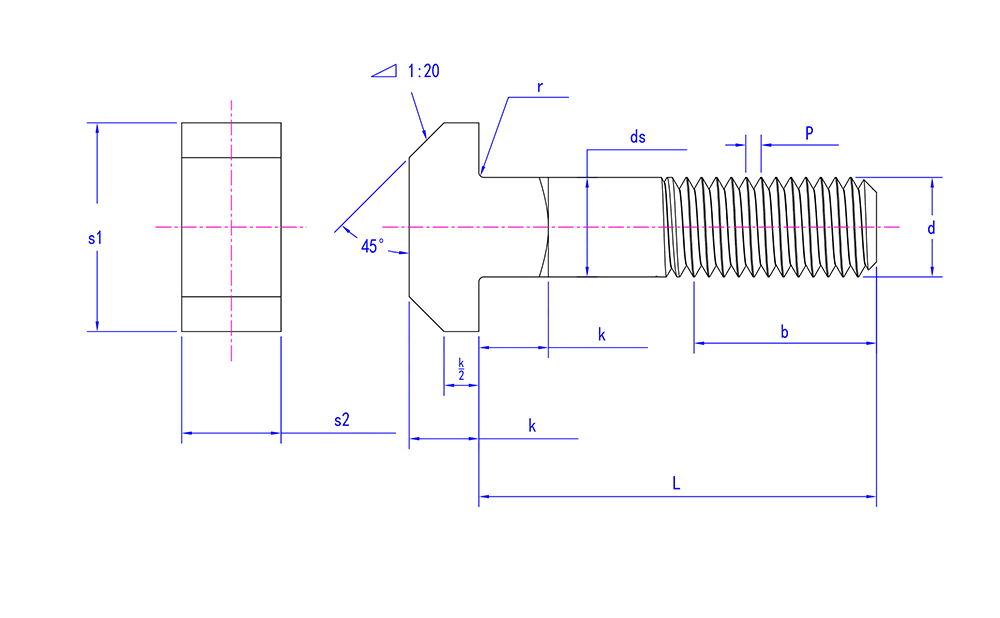

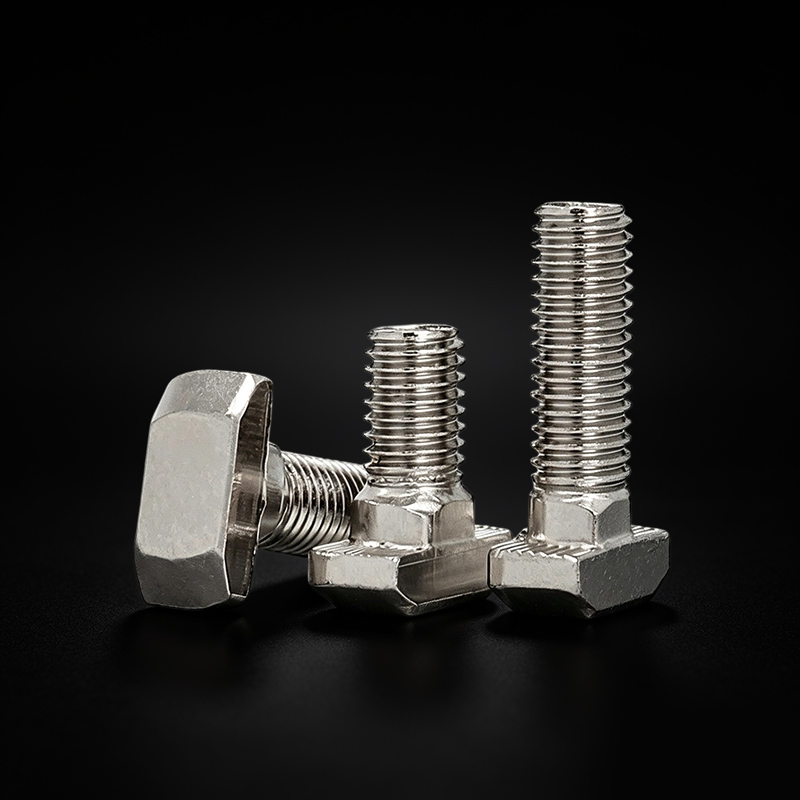

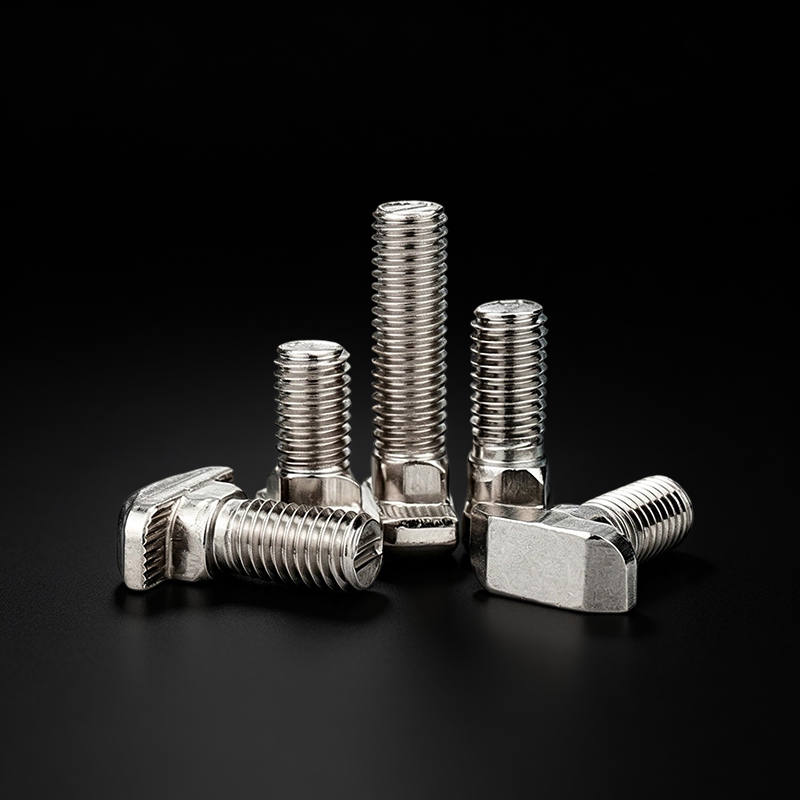

DIN186 Edelstahl-T-Kopf-Schrauben mit quadratischen Nackenschrauben

Mon

M6

M8

M10

M12

M16

M20

M24

M30

M36

M42

M48

P

1

1.25

1.5

1.75

2

2.5

3

3.5

4

4.5

5

DS Max

6.48

8.58

10.58

12.7

16.7

20.84

24.84

30.84

37

43

49

ds min

5.52

7.42

9.42

11.3

15.3

19.16

23.16

29.16

35

41

47

K Max

4.9

5.9

7.5

8.75

11.4

13.9

15.9

20

24

27

31

k min

4.1

5.1

6.5

7.75

9.6

12.1

14.1

18

22

25

29

S2 Max

6.6

8.75

10.75

12.9

16.9

21

25

31

37.25

43.25

49.25

S2 min

5.4

7.25

9.25

11.1

15.1

19

23

29

34.75

40.75

46.75

S1 Max

16.9

18.9

22

27

31

37.25

44.25

55.5

67.5

81.5

89.75

S1 min

15.1

17.1

20

25

29

34.75

41.75

52.5

64.5

78.5

86.25

R

0.5

0.5

0.5

1

1

1

1.6

1.6

2

2

2
